二级目录部署

本文介绍卷王问卷系统如何配置二级目录部署，适用于需要在域名下的子路径部署系统的场景。

应用场景​

二级目录部署适用于以下场景：

  • 共享域名资源，在同一域名下部署多个应用
  • 企业内部统一门户，需要在子路径下访问问卷系统
  • 反向代理环境，通过路径区分不同的后端服务
  • CDN 或负载均衡器配置，需要基于路径进行路由

前端代码修改​

获取二级目录版本​

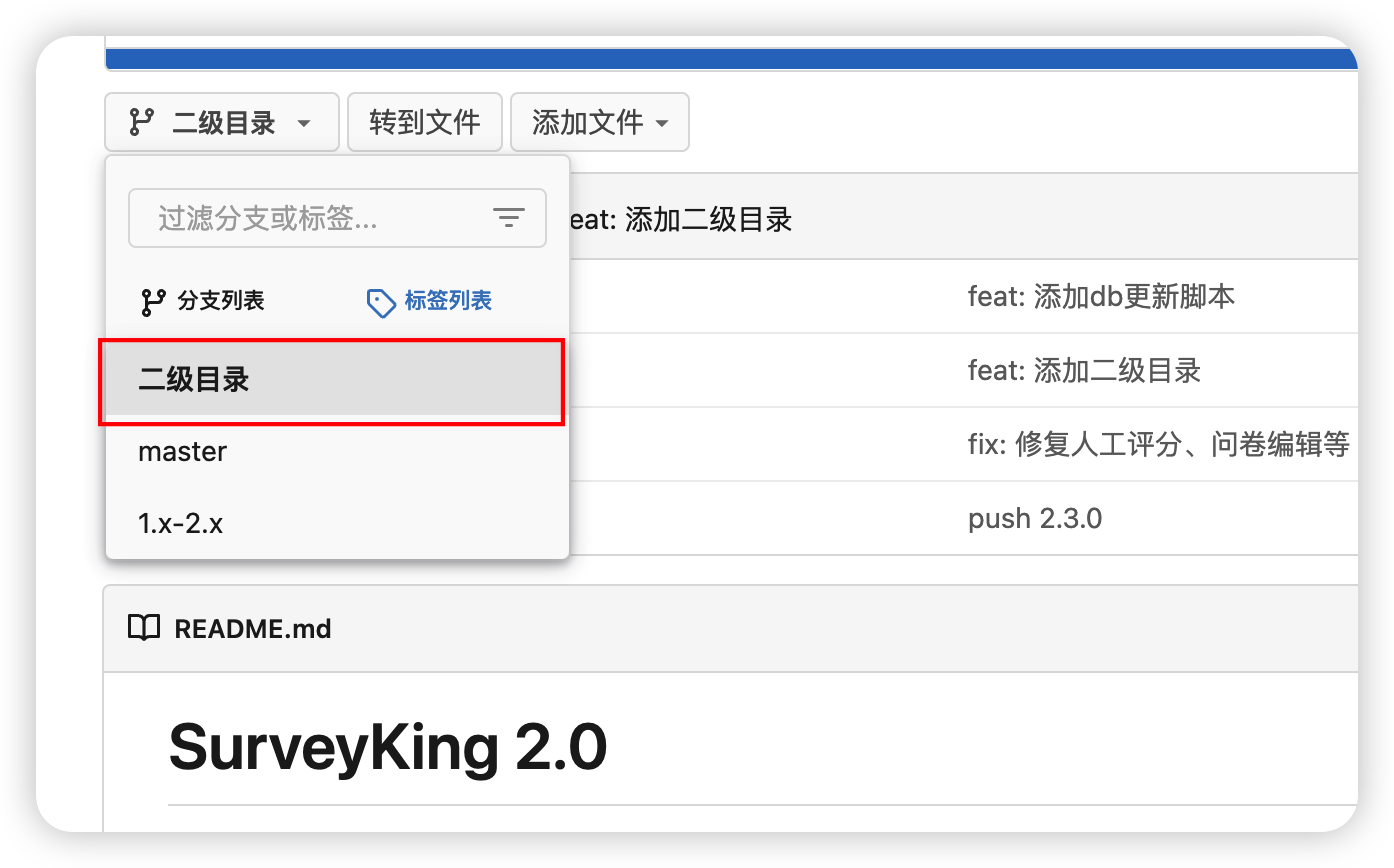

二级目录版本分支已单独推送到源码仓库，可通过以下方式获取：

1698819400965

配置二级目录路径​

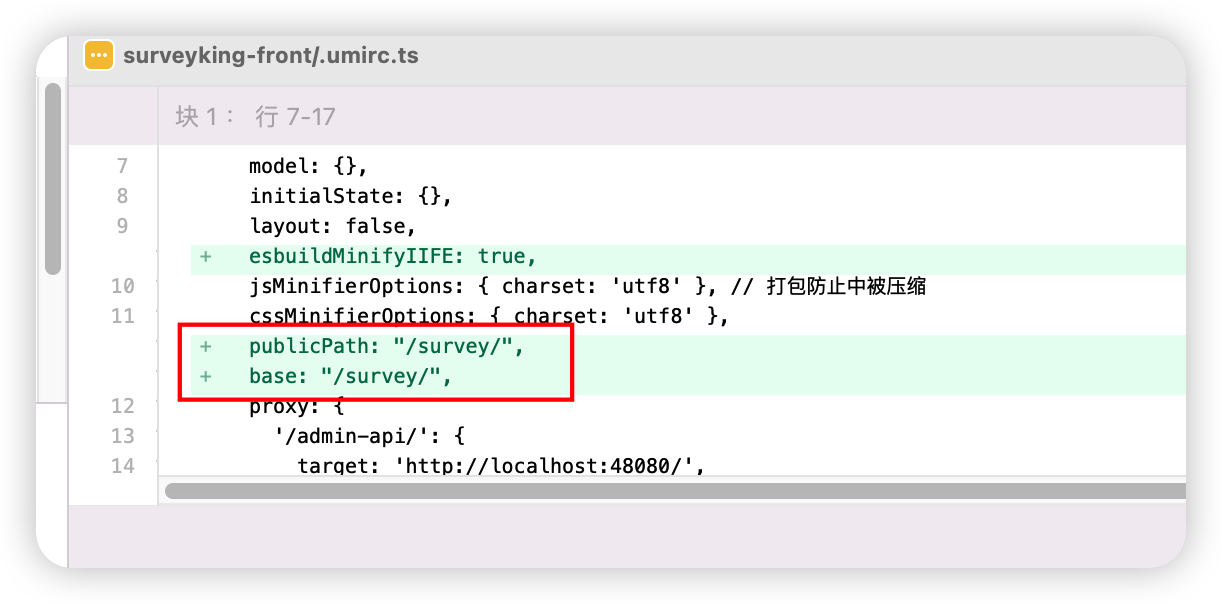

默认的二级目录名称是 /survey。如需改为其他名称，推荐通过构建变量重新构建前端：

1698819616306

配置说明：

SK_BASE_PATH=/survey pnpm build

重要提示：

  • 页面路由前缀为 /survey/
  • public 入口静态资源前缀为 /survey/pub/
  • admin 入口静态资源前缀为 /survey/adm/
  • 路径必须以 / 开头和结尾
  • 修改后需要重新构建前端项目

Nginx 配置​

基础配置​

正式部署的 nginx 配置文件如下，重点参见下面配置文件中的关键配置点：

map $http_upgrade $connection_upgrade {
    default upgrade;
    '' close;
}

server {
    listen 80;
    index index.html;
    client_max_body_size 30m;

    # 将 /usr/local/html/dist 替换为前端构建产物 dist 的实际绝对路径。
    location = /survey {
        return 301 /survey/;
    }

    location = /survey/pub/index.html {
        root /usr/local/html/dist/public;
        etag off;
        add_header Cache-Control "no-cache, no-store, must-revalidate" always;
        add_header Pragma "no-cache" always;
        add_header Expires "0" always;
        add_header X-Version $date_gmt always;
        add_header Vary "Accept-Encoding" always;
        try_files /index.html =404;
    }

    location = /survey/adm/index.html {
        root /usr/local/html/dist/admin;
        etag off;
        add_header Cache-Control "no-cache, no-store, must-revalidate" always;
        add_header Pragma "no-cache" always;
        add_header Expires "0" always;
        add_header X-Version $date_gmt always;
        add_header Vary "Accept-Encoding" always;
        try_files /index.html =404;
    }

    location ^~ /survey/pub/ {
        alias /usr/local/html/dist/public/;
        expires 1y;
        add_header Cache-Control "public, max-age=31536000, immutable";
        add_header Vary "Accept-Encoding" always;
        try_files $uri =404;
    }

    location ^~ /survey/adm/ {
        alias /usr/local/html/dist/admin/;
        expires 1y;
        add_header Cache-Control "public, max-age=31536000, immutable";
        add_header Vary "Accept-Encoding" always;
        try_files $uri =404;
    }

    # 答题、练习、公开查询、兑换页面走 public 入口。
    location ~ ^/survey/(e|s|t|q|redeem)(/|$) {
        root /usr/local/html/dist/public;
        add_header Cache-Control "no-cache, no-store, must-revalidate" always;
        add_header Pragma "no-cache" always;
        add_header Expires "0" always;
        add_header X-Version $date_gmt always;
        add_header Vary "Accept-Encoding" always;
        try_files /index.html =404;
    }

    # 登录注册绑定同时被答题和后台使用，线上优先返回 public 入口。
    location ~ ^/survey/user/(login|register|binding)/?$ {
        root /usr/local/html/dist/public;
        add_header Cache-Control "no-cache, no-store, must-revalidate" always;
        add_header Pragma "no-cache" always;
        add_header Expires "0" always;
        add_header X-Version $date_gmt always;
        add_header Vary "Accept-Encoding" always;
        try_files /index.html =404;
    }

    # API 路径默认不加 /survey 前缀，和前端页面前缀分开。
    location /captcha {
        proxy_pass http://localhost:1991/captcha;
        set_real_ip_from 0.0.0.0/0;
        real_ip_header X-Forwarded-For;
        real_ip_recursive on;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        client_max_body_size 30m;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;
        proxy_send_timeout 1800;
        proxy_read_timeout 1800;
        proxy_connect_timeout 1800;
    }

    location /admin-api {
        proxy_pass http://localhost:1991/admin-api;
        proxy_buffering off;
        proxy_cache off;
        set_real_ip_from 0.0.0.0/0;
        real_ip_header X-Forwarded-For;
        real_ip_recursive on;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        client_max_body_size 30m;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;
        proxy_send_timeout 1800;
        proxy_read_timeout 1800;
        proxy_connect_timeout 1800;
    }

    location /files {
        proxy_pass http://localhost:1991/files;
        set_real_ip_from 0.0.0.0/0;
        real_ip_header X-Forwarded-For;
        real_ip_recursive on;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        client_max_body_size 30m;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;
        proxy_send_timeout 1800;
        proxy_read_timeout 1800;
        proxy_connect_timeout 1800;
    }

    location /health {
        access_log off;
        return 200 "healthy\n";
        add_header Content-Type text/plain;
    }

    # 其它前端路由走后台入口。
    location /survey/ {
        root /usr/local/html/dist/admin;
        add_header Cache-Control "no-cache, no-store, must-revalidate" always;
        add_header Pragma "no-cache" always;
        add_header Expires "0" always;
        add_header X-Version $date_gmt always;
        add_header Vary "Accept-Encoding" always;
        try_files $uri $uri/ /index.html;
    }
}

配置说明​

关键配置点解析：

  1. 静态文件路径 (root/alias): 分别指向 dist/public 和 dist/admin
  2. 二级目录名称: /survey 需与前端构建变量 SK_BASE_PATH 保持一致
  3. 静态资源前缀: public 使用 /survey/pub/，admin 使用 /survey/adm/
  4. 后端服务端口: 根据实际后端部署情况修改端口号
  5. try_files: 确保前端路由正常工作，避免刷新页面时 404

常见场景​

1. 内外网独立访问​

使用场景：分离内外网访问，只允许外网访问答卷页面，管理页面仅限内网访问。当外网和内网使用不同的 nginx 时，可配置代理转发。

参考文档

2. 总行-分行架构部署​

使用场景：总行提供统一域名访问，但问卷系统实际部署在分行服务器上。总行域名通过代理转发到分行服务器。

架构说明：

  • 总行域名：a.com/survey
  • 分行服务器：b.com:58001
  • 前端项目配置：根目录部署（非二级目录）

总行 Nginx 配置​

总行服务器上的 nginx 配置，负责将请求转发到分行：

server {
    listen 8081;
    server_name a.com;

    # 将 /survey/ 路径的所有请求转发到分行服务器，并保留 /survey 前缀。
    location /survey/ {
        proxy_pass http://b.com:58001;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }

    # API 默认不加 /survey 前缀，也需要转发到分行。
    location /captcha {
        proxy_pass http://b.com:58001;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }

    location /admin-api {
        proxy_pass http://b.com:58001;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }

    location /files {
        proxy_pass http://b.com:58001;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

分行 Nginx 配置​

分行服务器上的 nginx 配置，直接提供服务：

map $http_upgrade $connection_upgrade {
    default upgrade;
    '' close;
}

server {
    listen 58001;
    server_name a.com;  # 使用总行域名
    index index.html;
    client_max_body_size 30m;

    # 前端使用 SK_BASE_PATH=/survey 构建，dist 目录包含 public 和 admin。
    location = /survey {
        return 301 /survey/;
    }

    location = /survey/pub/index.html {
        root /root/dist/public;
        etag off;
        add_header Cache-Control "no-cache, no-store, must-revalidate" always;
        add_header Pragma "no-cache" always;
        add_header Expires "0" always;
        add_header X-Version $date_gmt always;
        add_header Vary "Accept-Encoding" always;
        try_files /index.html =404;
    }

    location = /survey/adm/index.html {
        root /root/dist/admin;
        etag off;
        add_header Cache-Control "no-cache, no-store, must-revalidate" always;
        add_header Pragma "no-cache" always;
        add_header Expires "0" always;
        add_header X-Version $date_gmt always;
        add_header Vary "Accept-Encoding" always;
        try_files /index.html =404;
    }

    location ^~ /survey/pub/ {
        alias /root/dist/public/;
        expires 1y;
        add_header Cache-Control "public, max-age=31536000, immutable";
        add_header Vary "Accept-Encoding" always;
        try_files $uri =404;
    }

    location ^~ /survey/adm/ {
        alias /root/dist/admin/;
        expires 1y;
        add_header Cache-Control "public, max-age=31536000, immutable";
        add_header Vary "Accept-Encoding" always;
        try_files $uri =404;
    }

    location ~ ^/survey/(e|s|t|q|redeem)(/|$) {
        root /root/dist/public;
        add_header Cache-Control "no-cache, no-store, must-revalidate" always;
        add_header Pragma "no-cache" always;
        add_header Expires "0" always;
        add_header X-Version $date_gmt always;
        add_header Vary "Accept-Encoding" always;
        try_files /index.html =404;
    }

    location ~ ^/survey/user/(login|register|binding)/?$ {
        root /root/dist/public;
        add_header Cache-Control "no-cache, no-store, must-revalidate" always;
        add_header Pragma "no-cache" always;
        add_header Expires "0" always;
        add_header X-Version $date_gmt always;
        add_header Vary "Accept-Encoding" always;
        try_files /index.html =404;
    }

    location /captcha {
        proxy_pass http://localhost:48080/captcha;
        set_real_ip_from 0.0.0.0/0;
        real_ip_header X-Forwarded-For;
        real_ip_recursive on;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        client_max_body_size 30m;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;
        proxy_send_timeout 1800;
        proxy_read_timeout 1800;
        proxy_connect_timeout 1800;
    }

    location /admin-api {
        proxy_pass http://localhost:48080/admin-api;
        proxy_buffering off;
        proxy_cache off;
        set_real_ip_from 0.0.0.0/0;
        real_ip_header X-Forwarded-For;
        real_ip_recursive on;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        client_max_body_size 30m;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;
        proxy_send_timeout 1800;
        proxy_read_timeout 1800;
        proxy_connect_timeout 1800;
    }

    location /files {
        proxy_pass http://localhost:48080/files;
        set_real_ip_from 0.0.0.0/0;
        real_ip_header X-Forwarded-For;
        real_ip_recursive on;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        client_max_body_size 30m;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;
        proxy_send_timeout 1800;
        proxy_read_timeout 1800;
        proxy_connect_timeout 1800;
    }

    location /health {
        access_log off;
        return 200 "healthy\n";
        add_header Content-Type text/plain;
    }

    location /survey/ {
        root /root/dist/admin;
        add_header Cache-Control "no-cache, no-store, must-revalidate" always;
        add_header Pragma "no-cache" always;
        add_header Expires "0" always;
        add_header X-Version $date_gmt always;
        add_header Vary "Accept-Encoding" always;
        try_files $uri $uri/ /index.html;
    }
}

前端配置说明​

对于这种架构，前端仍按二级目录构建：SK_BASE_PATH=/survey pnpm build。

关键配置点​

  1. 总行代理转发：

    • location /survey/ 匹配带 /survey/ 前缀的请求
    • proxy_pass http://b.com:58001 转发时保留 /survey 前缀
    • /captcha、/admin-api、/files 默认不加二级目录前缀，也需要单独转发

  2. 分行服务配置：

    • 监听端口 58001 对应总行转发的目标端口
    • server_name 使用总行域名，确保 Host 头正确
    • 前端项目按 /survey 二级目录构建，确保 /survey/pub/ 与 /survey/adm/ 资源可访问

  3. 访问路径示例：

    • 用户访问：https://a.com/survey/
    • 总行转发：http://b.com:58001/survey/
    • 分行响应：返回前端首页

注意事项：

  • 确保分行服务器的防火墙允许总行服务器访问 58001 端口
  • 网络连通性测试：总行服务器能正常访问 b.com:58001
  • 日志监控：建议在两端都启用访问日志，便于问题排查

通过以上完善的配置和说明，您可以顺利完成卷王问卷系统的二级目录部署。
